Description

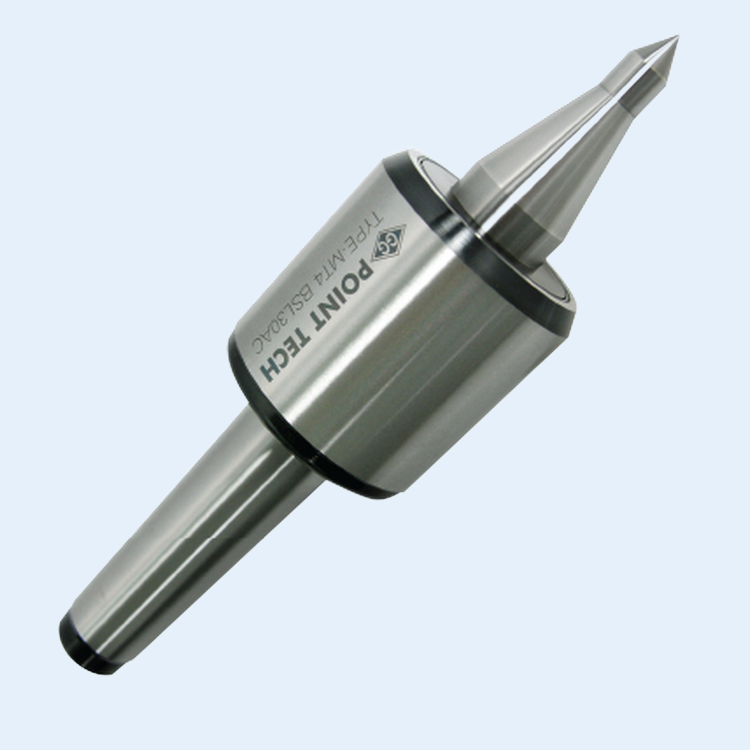

The Point Tech BSL30A/BSL30AC High Speed Economical Live Center is engineered for applications where extended reach and improved tool accessibility are important. The extended A-type configuration enhances machining flexibility while maintaining guaranteed accuracy of 0.002 mm TIR (0.0001"). Designed for spindle speeds up to 6,000 RPM, the center incorporates a heat-treated point hardened to HRC 60 ±2, double angular contact bearings, and an anti-friction seal to promote stable high-speed operation and protection against coolant contamination. The heat-treated body adds rigidity, strength, and long-term durability. For demanding production applications, a carbide-point option hardened to HRa 90 ±5 is available to provide superior wear resistance. The BSL30A Series offers an economical yet highly capable solution for precision machining operations requiring increased clearance and dependable performance.
Additional Information (Click to open):
